Power tiller-YCWG65

Short Description:

Micro cultivator is based on China’s vast hills, mountainous areas, small plots, high difference, and no machine and design.


Product Detail

Product Tags

MODEL NAME

YCWG40(178F)

ENGINE MODEL

RATED POWER(kw)

6.5

ENGINE SPEED(r/min)

3600

STARTING SYSTEM

RECOIL TYPE HANDLE STARTER

FUEL TYPE

DIESEL

DIMENSION WHEN WORKING(L*W*H)(mm)

1700*1080*1000

WORKING SPEED(m/s)

0.1-0.3

HOURLY PRODUCTIVITY h㎡/(h.m)

≥0.04

THE WORK BREADTH(mm)

1050

WORK SUBSOIL(mm)

≥100

THE TRANSMISSION WAY

ENGINE POTPUT

DIRECT ATTACH

KNIFE ROLLER

GEAR TRANSMISSION

HANDLE ADJUSTMENT

THE HORIZONTAL DIRECTION

THE VERTICAL DIRECTION

120°

KNIFE ROLLER

DESIGN SPEED(r/min)

FAST GEAR:145

SLOW GEAR:83

MAXIMUM RADIUS OF ROTATION(mm)

180

TOTAL NUMBER OF INSTALLED KNIVES

32

ROTARY TILLAGE KNIFE MODEL

DRYLAND KNIFE

MAIN CLUTCH

FORM

FRICTION PLATE

STATE

NORMALLY OPEN

WEIGHT(kg)

113

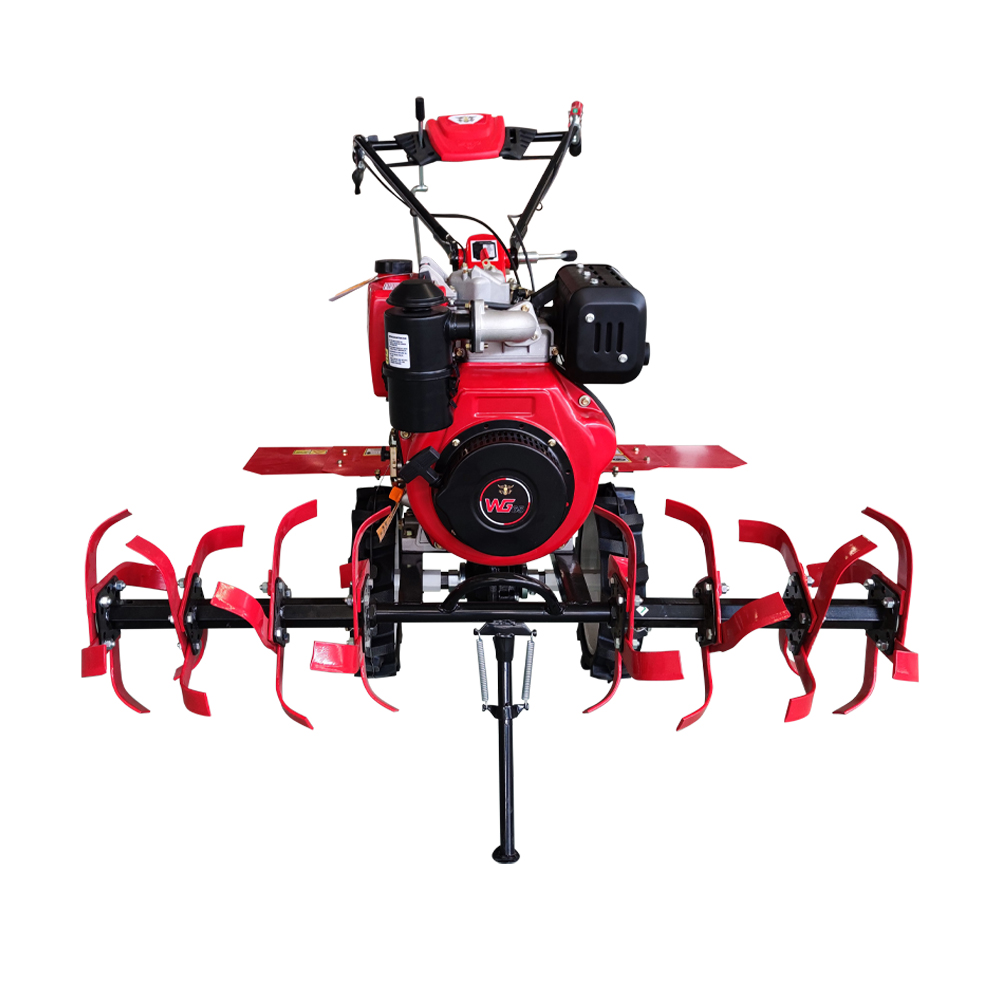

Power tiller-YCWG65-4

Micro cultivator is based on China’s vast hills, mountainous areas, small plots, high difference, and no machine and design. Powered by small gasoline engine or diesel engine, it has the characteristics of light weight, small size, simple structure, convenient operation, easy maintenance, low fuel consumption and high production efficiency.

It can also be used for the management of vegetable greenhouses, nurseries, orchards and tea gardens.

Micro-tiller can be equipped with dry field rotary tiller straight teeth, dry field rotary tiller bent teeth, paddy field compound teeth, weeding teeth, hoe, seeder, soil, widely used in plastic greenhouses, hills, mountains, tobacco, tea and other planting operations.

Fully surrounded mud retaining and front wheel drive, so that you use more safe, more assured.

This model has three characteristics: one is economical, practical. The second characteristic is small size, light weight, flexible operation, safe and convenient, especially suitable for greenhouse, orchard, vineyard, terrace, slope and small land use. Features of the third function, the machine can only replace the operating tool under the case of hoe, hoe and other farmland operations, is the right hand of farmers friends to get rich. The machine can be equipped with: weeding wheel, hoe, rotary cultivator, etc.
