MODEL NAME |
YCWG40(178F) |
|
ENGINE MODEL |
RATED POWER(kw) |
4 |
ENGINE SPEED(r/min) |
3600 |
|
STARTING SYSTEM |
RECOIL TYPE HANDLE STARTER |
|
FUEL TYPE |
DIESEL |
|
DIMENSION WHEN WORKING(L*W*H)(mm) |
1500*1080*950 |
|
WORKING SPEED(m/s) |
0.1-0.3 |
|
HOURLY PRODUCTIVITY h㎡/(h.m) |
≥0.04 |
|
THE WORK BREADTH(mm) |
1050 |
|
WORK SUBSOIL(mm) |
≥100 |
|
THE TRANSMISSION WAY |
ENGINE POTPUT |
DIRECT ATTACH |
KNIFE ROLLER |
GEAR TRANSMISSION |
|
HANDLE ADJUSTMENT |
THE HORIZONTAL DIRECTION |
0° |
THE VERTICAL DIRECTION |
120° |
|
KNIFE ROLLER |
DESIGN SPEED(r/min) |
FAST GEAR :130 SLOW GEAR:93 |
MAXIMUM RADIUS OF ROTATION(mm) |
180 |
|
TOTAL NUMBER OF INSTALLED KNIVES |
32 |
|
ROTARY TILLAGE KNIFE MODEL |
DRYLAND KNIFE |
|
MAIN CLUTCH |
FORM |
FRICTION PLATE |
STATE |
NORMALLY OPEN |
|
WEIGHT(kg) |
90 |

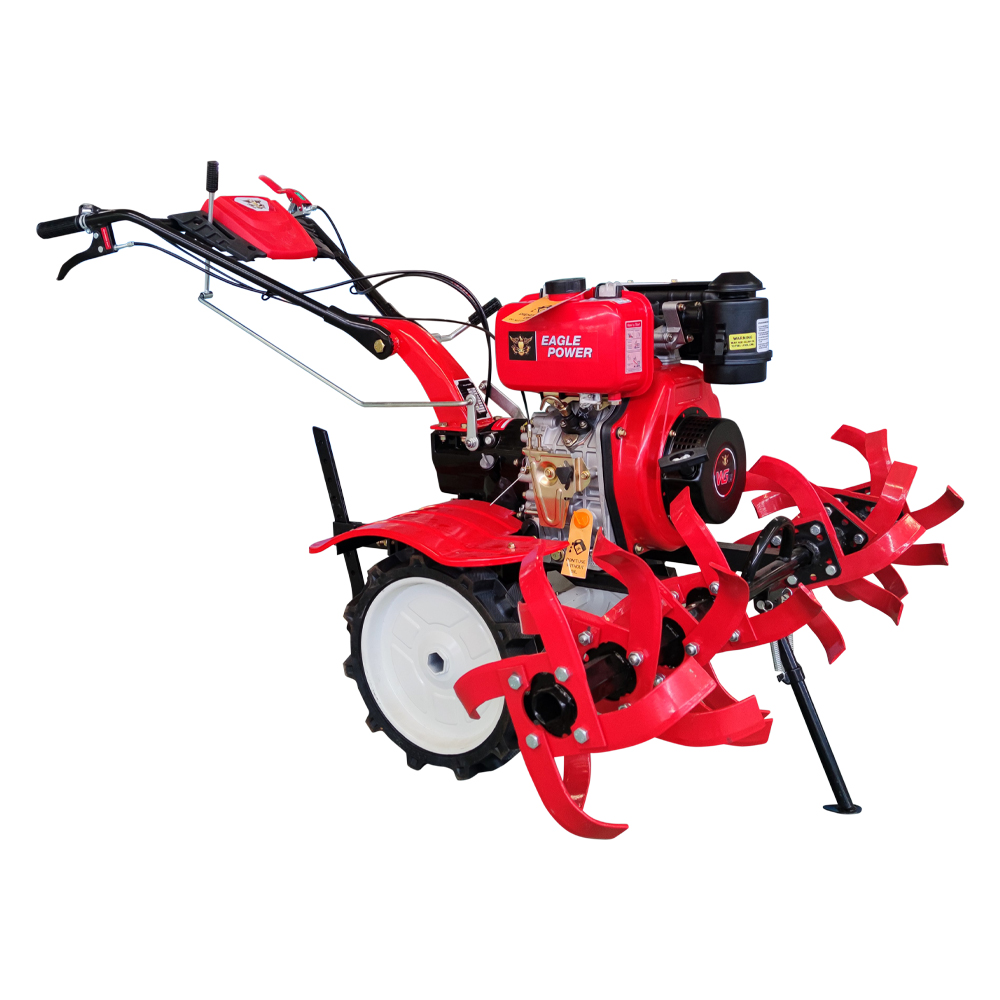

Micro cultivator is based on China’s vast hills, mountainous areas, small plots, high difference, and no machine and design. Powered by small gasoline engine or diesel engine, it has the characteristics of light weight, small size, simple structure, convenient operation, easy maintenance, low fuel consumption and high production efficiency.
It can also be used for the management of vegetable greenhouses, nurseries, orchards and tea gardens.
Micro-tiller can be equipped with dry field rotary tiller straight teeth, dry field rotary tiller bent teeth, paddy field compound teeth, weeding teeth, hoe, seeder, soil, widely used in plastic greenhouses, hills, mountains, tobacco, tea and other planting operations.
Fully surrounded mud retaining and front wheel drive, so that you use more safe, more assured.
This model has three characteristics: one is economical, practical. The second characteristic is small size, light weight, flexible operation, safe and convenient, especially suitable for greenhouse, orchard, vineyard, terrace, slope and small land use. Features of the third function, the machine can only replace the operating tool under the case of hoe, hoe and other farmland operations, is the right hand of farmers friends to get rich. The machine can be equipped with: weeding wheel, hoe, rotary cultivator, etc.
