Working principle of variable frequency generator:
A variable frequency generator is a generator that connects and assembles the stator and rotor of the generator through bearings, frame, and end caps to achieve the effect of operation. The variable frequency generator rotates the rotor in the stator through bearings and introduces a certain excitation current through sliding rings. The variable frequency generator turns the stator into a rotating magnetic field, and the stator coil of the variable frequency generator cuts the magnetic field lines to generate induced electromotive force, The variable frequency generator is led out through wiring terminals and then connected to the circuit to generate current.
The variable frequency generator generates alternating current in household circuits and other circuits because there is a circuit break at the connection between the brush and the rotor, which causes the rotor to operate in a certain direction and generate alternating current.
Advantages of variable frequency generators compared to traditional generators:
1. The working speed of a variable frequency generator can vary over a large range, making it a good match for the generator and achieving fuel savings;
2. Variable frequency generators can operate in high speed areas, thus outputting the same power. Variable frequency generators have much smaller weight and volume. In terms of frequency conversion generators, it means increasing power and having a higher specific power;
3. The AC generator operates at a high speed, and the variable frequency generator also reduces weight and volume;
4. Based on the above 2 and 3 points, the editor has concluded that it has also saved a lot of metal materials;
5. The output power of the AC generator is of high quality – pure sine wave output with very low harmonic content.

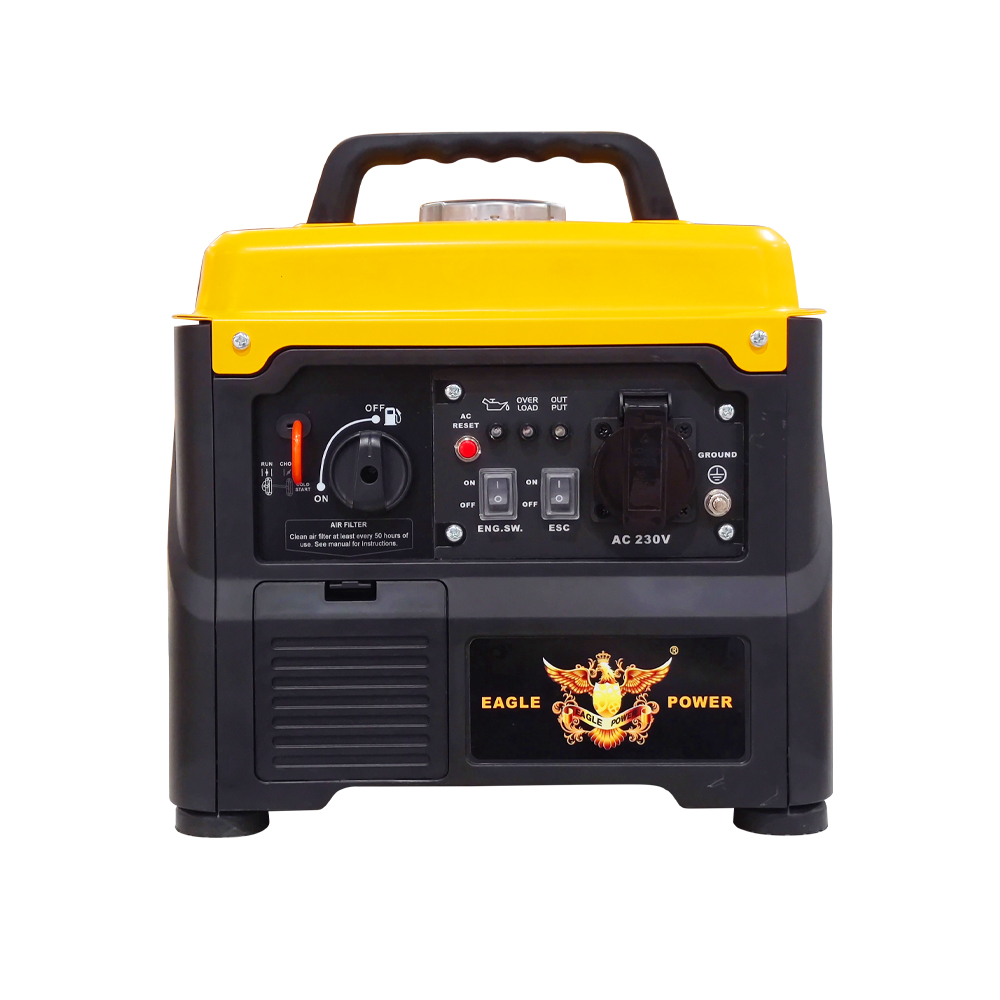

Variable frequency generator picturePurchase address for variable frequency generators
